eSONIC

Our highly flexible eSONIC uses ultrasonic cutting technology to accurately portion tray bake and round products such as cakes, pies and quiche or loaf cakes to your specifications.  This compact, stand-alone solution requires minimal floor space, is easily movable to suit your production requirements and is simple to operate using the user-friendly colour touch screen.

This machine can be adapted to your needs with easy-to-edit programs and a range of blade options available.

Specifications

Use the tabs below to view the information for this machine,
or download a copy of the Datasheet at the bottom of the page

DSC_0376

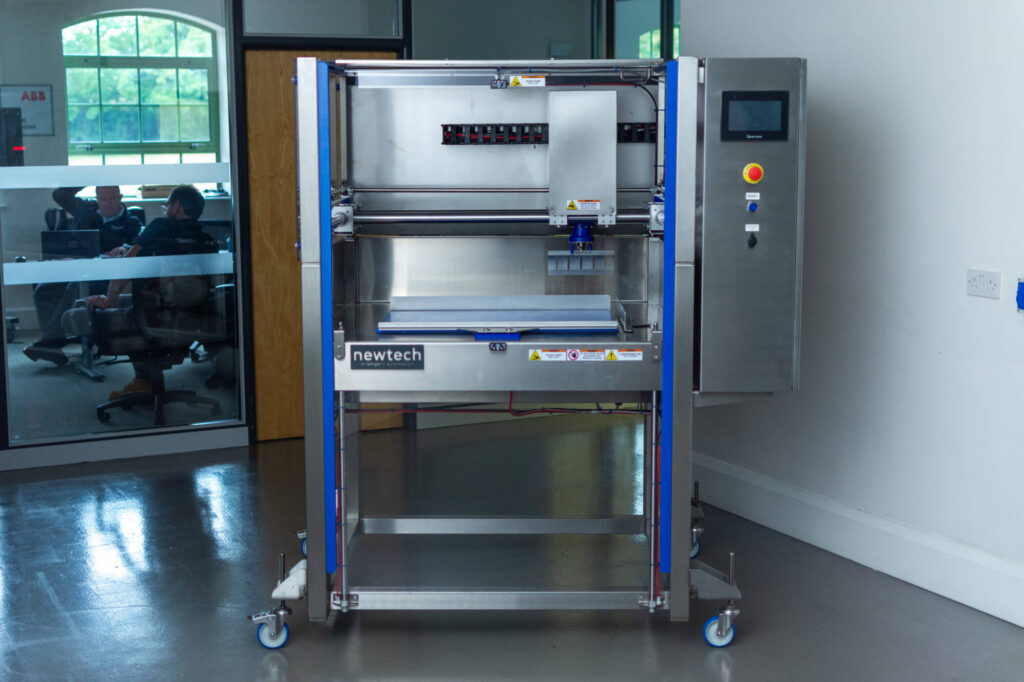

The eSONIC is a flexible automated cutting machine incorporating ultrasonic cutting technology. It is designed to portion a large range of products which include tray bake and round cakes, pies and quiche or it can be configured to portion loaf cakes. Compact in design, this stand-alone solution requires minimal factory floor space and is easily movable to suit your production requirements.

Key features

  • Designed for cutting numerous products which include tray bake and round cakes, pies and quiche
  • Full traybake 30” x 18” / 762mm x 457mm
  • Rounds up to 280mm diameter, 65mm tall
  • 4-Axis solution providing flexiblity, reliability and accuracy
  • Operated via full Colour touch screen with user friendly interface and easy-to-edit programs
  • 3 user log in levels – Operator, Supervisor and Engineer

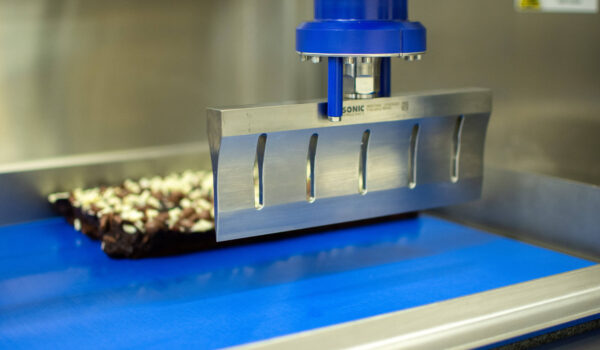

  • 150mm wide 30kHz ultrasonic titanium blade with options up to 300mm wide
  • Optional integrated cleaning tank with air-dry
DSC_0030

Services required

  • Single Phase 230V 16A
  • 6 bar Air
  • Mains Water Supply for Cleaning Tank
  • Ethernet Connection for Remote Access

Additional features

  • Cut on nested product boards
  • Small footprint
  • Stainless Steel construction & food grade plastics
  • Remote access capability
  • Range of blade size options to suit your application
  • Also available with a mechanical blade

    To find out how a newtech machine can increase your product’s throughput, solve your cutting challenges and ultimately save your business money, contact us now.
