RoboSONIC Inline XL

Designed to portion tray bake, round and loaf type products and with a larger than standard 760mm blade (meaning the entire length of tray bake products can be sliced in one cut), the RoboSONIC Inline XL is ideal for customers with high throughput requirements.

robo-i 760 render 2

Specifications

Use the tabs below to view the information for this machine,
or download a copy of the Datasheet at the bottom of the page

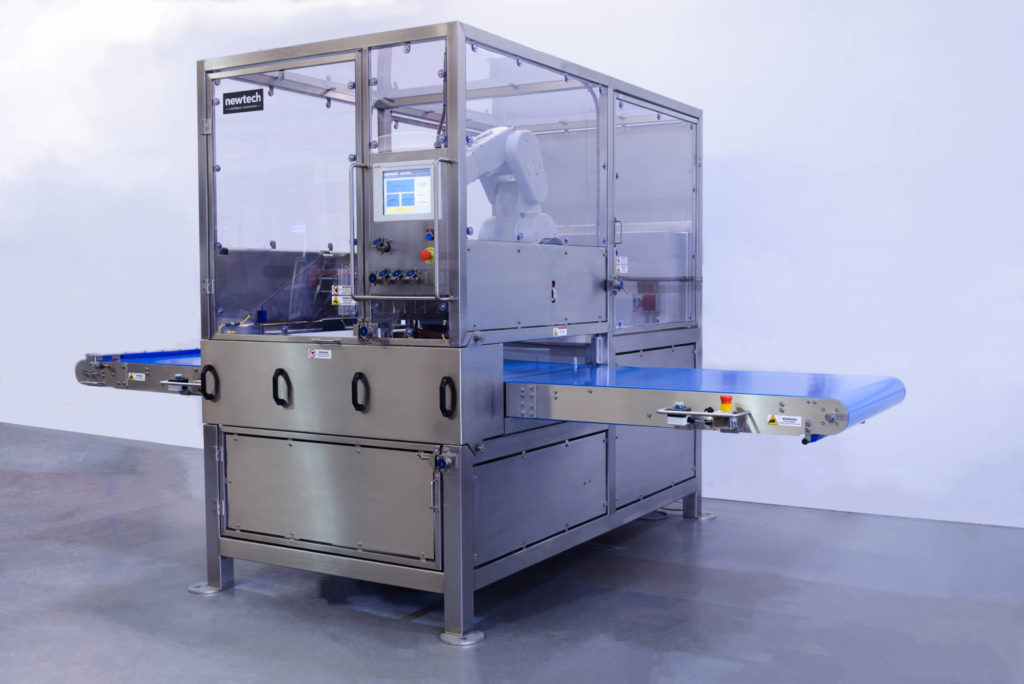

roboSONIC-XL (4) - JT final edit

The roboSONIC-Inline XL is a highly flexible, in-line robotic machine incorporating ultrasonic cutting technology. It is designed to portion tray bake, round and loaf type products. With its larger than standard 760mm blade, the entire length of tray bake products can be sliced in one cut, ideal for customers with high throughput requirements. As a conveyor-based machine, it can be integrated into an existing line or used as a stand-alone solution.

Key features

  • Designed for cutting tray bake, round and loaf type products with high throughput requirements
  • 6-Axis robot providing flexiblity, reliability and accuracy
  • Operated via full Colour touch screen with user friendly interface and easy-to-edit programs
  • 3 user log in levels – Operator, Supervisor and Engineer
  • 20kHz ultrasonic titanium 760mm wide blade
  • Integrated cleaning tank with air-dry
  • Remote access capability
robo-i 760 render 2

Services required

  • Single Phase 230V 16A
  • 6 bar Air
  • Mains Water Supply for Cleaning Tank
  • Ethernet Connection for Remote Access

Additional features

  • Cut on the belt or on product boards
  • Fully Stainless Steel construction & food grade plastics
  • Quick-release conveyor belt for ease of removal
  • Head change over available as an optional extra
  • Also available with a mechanical blade

Contact us today about how the RoboSONIC Inline XL can solve your cutting challenges and save your business money. For further technical specifications, you can also download our in-depth data sheet.
