RoboSONIC Inline Industrial Food Cutting Machine

RoboSONIC Inline

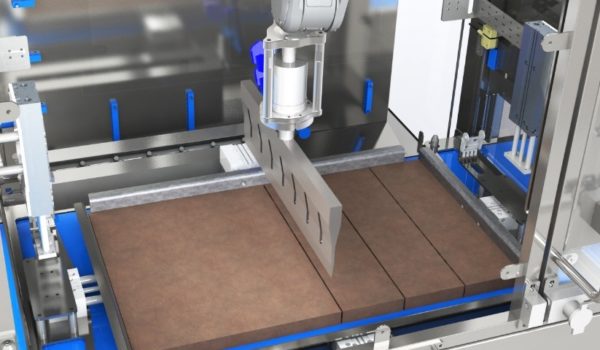

This in-line robotic cutting machine uses ultrasonic technology to portion traybake, round and loaf products.

The RoboSONIC Inline is conveyor-based and can be integrated into your existing production line or be used as a standalone solution. It is simple to operate and programme via a user-friendly, full colour interface and is highly flexible, with a range of blade sizes and automated head change over available as optional extras.

Specifications

Use the tabs below to view the information for this machine,
or download a copy of the Datasheet at the bottom of the page

The roboSONIC-Inline is a highly flexible, in-line robotic cutting machine incorporating ultrasonic cutting technology. It is designed to portion tray bake, round and loaf type products. As a conveyor-based machine, it can be integrated into an existing line or used as a stand-alone solution.

Key features

Designed for cutting tray brake, round and loaf type products
6-Axis robot providing flexiblity, reliability and accuracy
Operated via full Colour touch screen with user friendly interface and easy-to-edit programs
3 user log in levels – Operator, Supervisor and Engineer
20kHz 500mm ultrasonic titanium blade
Integrated cleaning tank with air-dry
Remote access capability

Services required

Single Phase 230V 16A
6 bar Air
Mains Water Supply for Cleaning Tank
Ethernet Connection for Remote Access

Additional features

Cut on the belt or on product boards
Fully Stainless Steel construction & food grade plastics
Quick-release conveyor belt for ease of removal
Range of blade size options to suit your application
Head change over available as an optional extra
Also available with a mechanical blade

Machine dimensions (L x D x H)

3830 x 1532 x 2120mm
