Wire Cutter 2B

The Wire Cutter 2B is a two-stage wire cutter for block cheese portioning, allowing for blocks to be processed down to portions on a single machine.

The blocks are portioned via pneumatic pusher assemblies which push the product through two wire grid sets to the desired cut pattern. The cheese block first gets pushed through a grid which cuts it in to logs, then through the second which cuts it into portions. The pusher assemblies contain grooves matching the cut configuration of the wire grid, ensuring the product is cut through entirely.

This machine is easily operated, with a cut cycle that is controlled by simple push button operation. Quick release wire fittings allow the operator to quickly and easily replace or re-tension a wire as and when required.

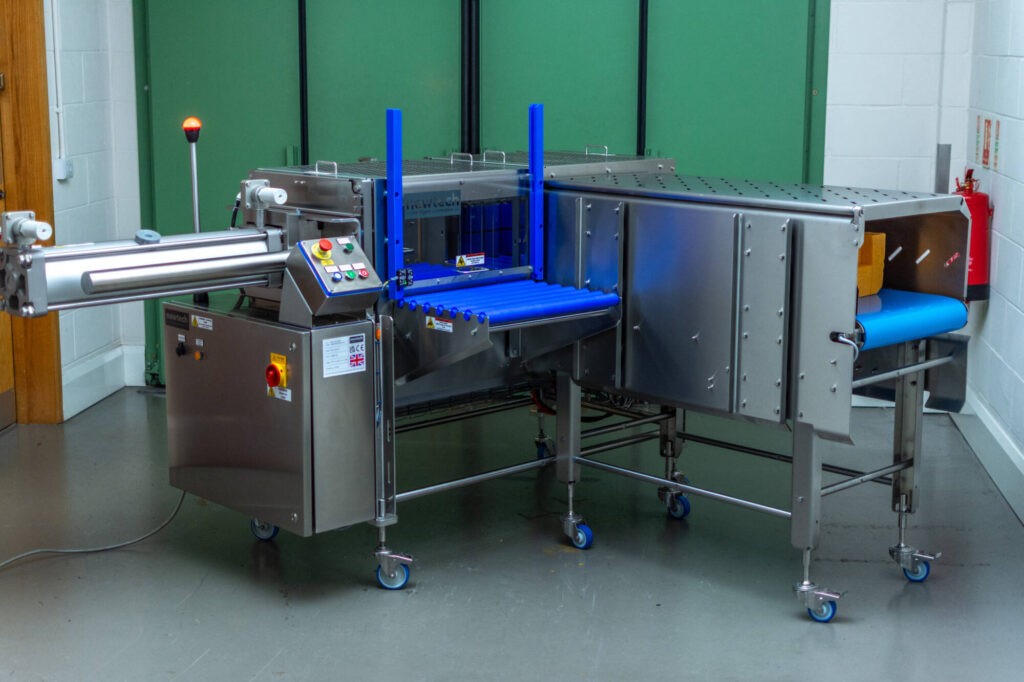

DSC_0339

Specifications

Use the tabs below to view the information for this machine,
or download a copy of the Datasheet at the bottom of the page

DSC_0339

The Wire Cutter 2B is a two-stage wire cutter for block cheese portioning, allowing for blocks to be processed down to portions on a single machine.



Key features

  • Designed for cutting block cheese
  • Infeed roller bed
  • 2 x Pneumatic assemblies push the product through wire grids, the first cuts the product into logs and the second into portions
  • Cut cycle controlled by simple push button operation
  • Cut blocks exit the machine on a variable speed conveyor
  • Easily interchangeable wire grids, enabling multiple cut configurations

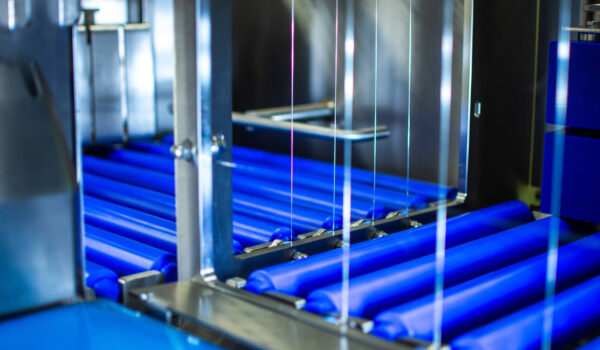

DSC_0161

Services required

  • 6 bar clean and dry air
  • 230v 16A single phase electrical supply

Additional features

  • Small footprint
  • Stainless Steel construction & food grade plastics
  • Pusher assemblies feature pusher blocks that contain grooves to match the cut configuration of the wire grid, allowing it to partially pass through the wires, ensuring all of the cheese block is pushed through and cut
  • Lockable castor wheels
  • Simple fittings to allow the operator to quickly and easily change a wire over and re-tension in the instance of a wire snapping
  • Single wire head assembly and matching pusher block is supplied for each of the two cutting areas as standard. Additional parts for different cut configurations can be purchased as optional extras

    To find out how a newtech machine can increase your product’s throughput, solve your cutting challenges and ultimately save your business money, contact us now.
